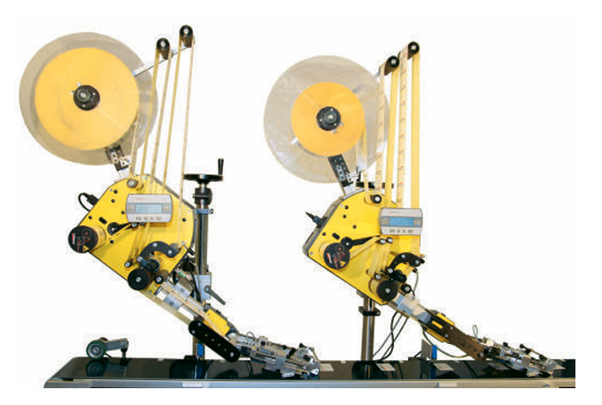

Collamat S300 High-Speed Labelling Machine

When high speed and precision are needed – Collamat S 300 is the solution

Collamat S 300 is easy to handle – the setup times are very short because of the intuitive menu guide at the control panel and the possibility to store up to 99 programmes. The powerful micro-step motor drive allows for high precision labelling quality. The high resolution encoder guarantees the best possible labelling accuracy.

The High Speed Labeller Collamat S 300 can work in several operational modes: It can work in MONO mode for easy tasks, in NON-STOP mode, where two labellers are installed and connected together and, the automatic change-over (in case of label reel end, liner break, error, etc.) from one labeller to the other, guarantees that all products are labelled. The TANDEM mode is also realized with two labellers which alternate the labels on the product to increase productivity.

Space saving and flexibility

The complete electronics and the motorised re-winder are integrated in the body of the traction unit. The compact size of the labeller makes the integration in a production line very easy. The modular design allows integration (also at a later point) of external devices like printers, scanners, black mark readers, etc.

High Quality

The wear is reduced to a minimum. The stepper motor drive and the motorised re-winder need little maintenance. All bodies are made of die casted Aluminium for maximal stability and to avoid electromagnetic disturbances.

Dual core processor

The fast processor makes the exact calculation of all parameters, for each label, in real time.

Adjustable ramps

All ramp parameters of the motor are adjustable in order to adapt the acceleration to the different label qualities. The programmable ramps and the special label applicator reduce the risk of liner break to an absolute minimum.

Self-teach label scanner

The optical label scanner has a self-teaching function and adapts itself continuously to the environmental light, label transparency variations, etc.
